This is the list of modules available at the moment. This list can be extended in the future. All modules are available and automatically updated.



Remember that you can run any module locally on your computer or from another niliBOX installation available in your network or via Internet.

Radio

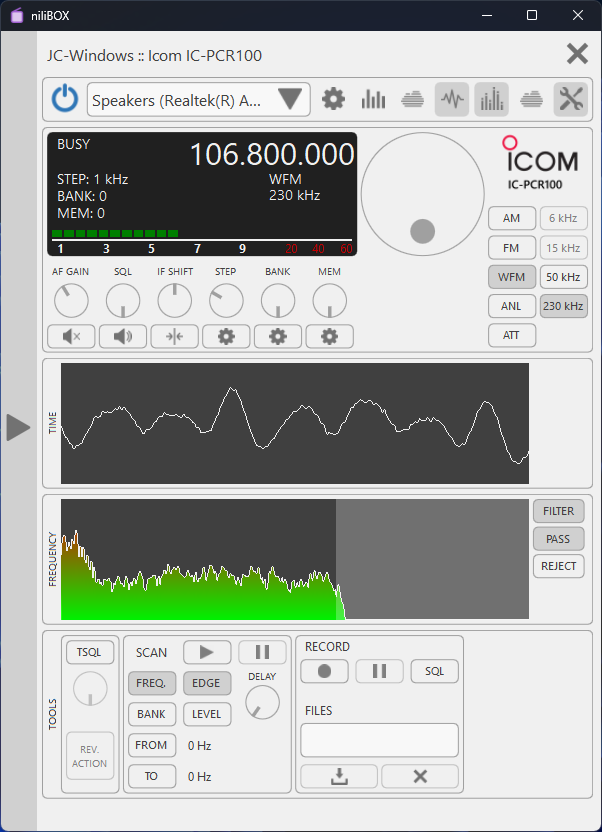

Icom IC-PCR100
Icom IC-PCR100 config

Icom IC-PCR100

  • Control of an Icom IC-PCR100 receiver via serial port (local or remote)
  • Includes the main functionalities of the receiver
  • 1 million station memories in 1000 banks
  • Visualization of bandscope and band spectrogram
  • Visualization of audio in time, frequency and spectrogram
  • Filtering of audio output
  • TSQL, scan and audio recording functions

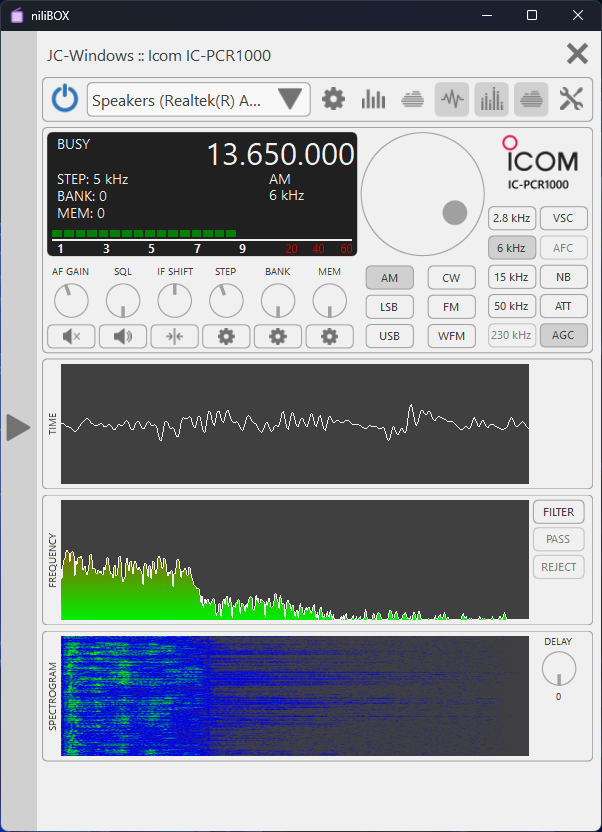

Icom IC-PCR1000
Icom IC-PCR1000 config

Icom IC-PCR1000

  • Control of an Icom IC-PCR1000 receiver via serial port (local or remote)
  • Includes the main functionalities of the receiver
  • 1 million station memories in 1000 banks
  • Visualization of bandscope and band spectrogram
  • Visualization of audio in time, frequency and spectrogram
  • Filtering of audio output
  • TSQL, scan and audio recording functions

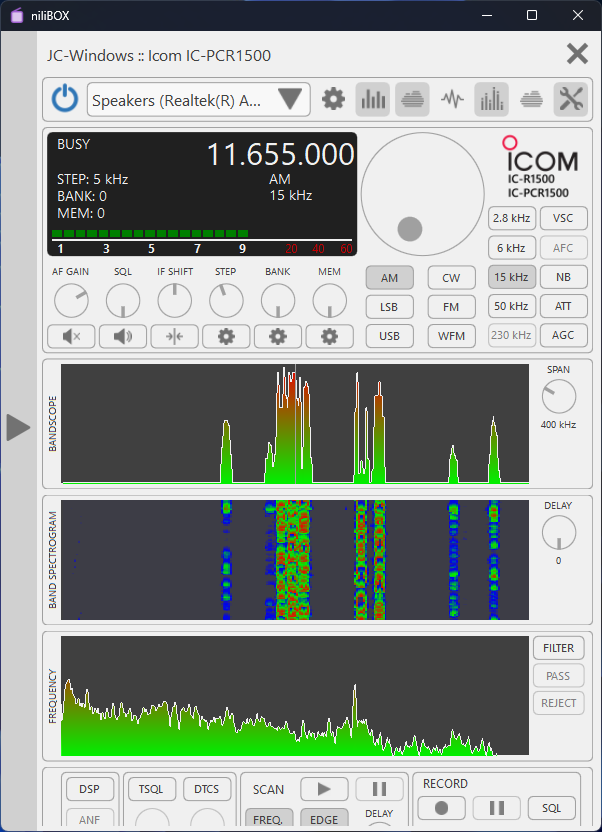

Icom IC-PCR1500
Icom IC-PCR1500 config

Icom IC-PCR1500

  • Control of an Icom IC-PCR1500 receiver via USB port (local or remote)
  • Includes the main functionalities of the receiver
  • 1 million station memories in 1000 banks
  • Visualization of bandscope and band spectrogram
  • Visualization of audio in time, frequency and spectrogram
  • Filtering of audio output
  • DSP, TSQL, DTCS, scan and audio recording functions
RTL2832U SDR
RTL2832U SDR config

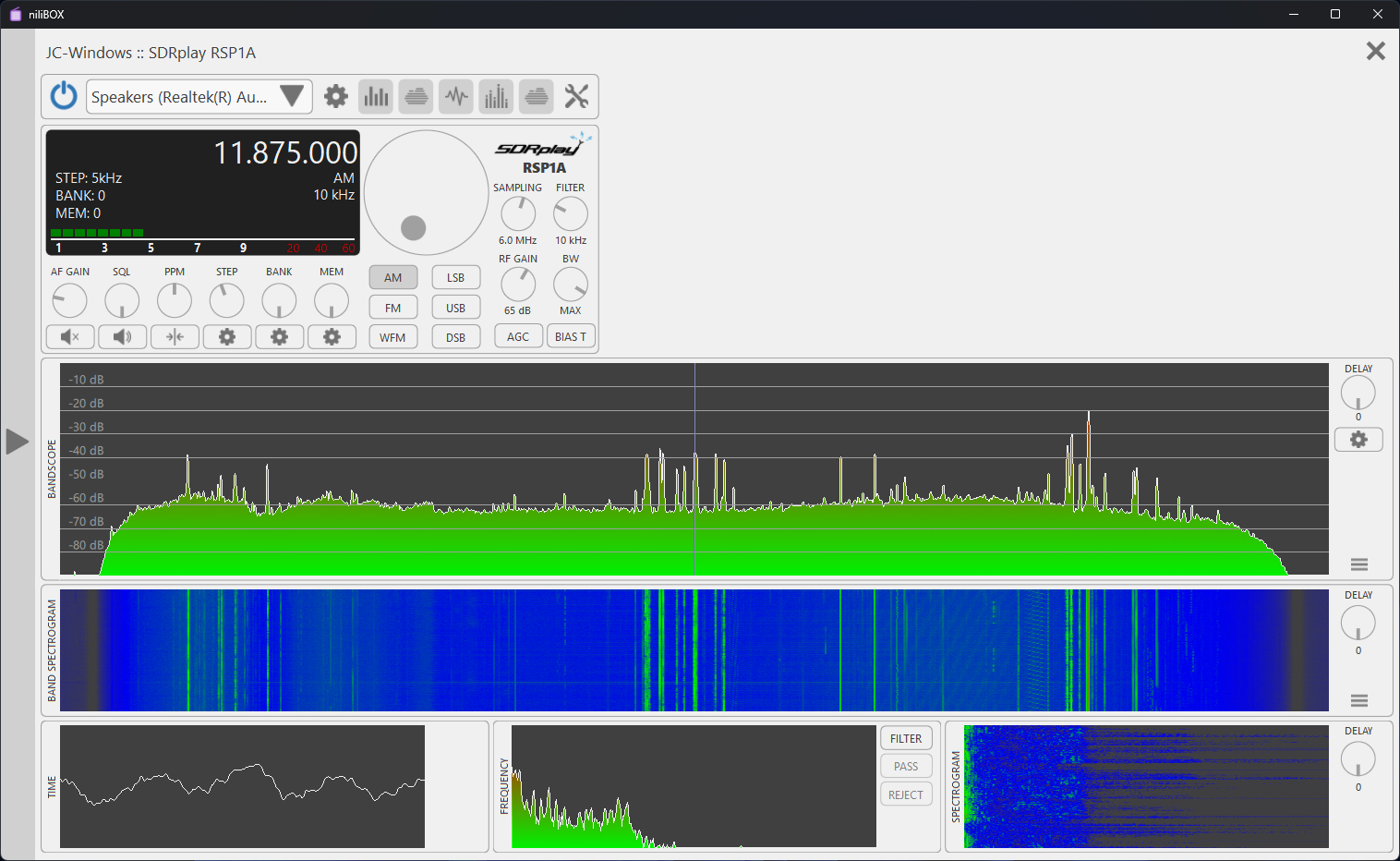

SDRplay

  • Control of a SDRplay SDR radio receiver - RSP1, RSP2, RSP1a & RSPdx fully supported. RSPduo in single receiver mode.
  • Sampling frequency up to 10MHz
  • Continuous tuning from 1kHZ to 2GHz
  • RSP AGC and audio AGC functions
  • Many of the RSP functionalities: multiple antennas, bandwidth control, Bias-T, DC offset, etc.
  • 1 million station memories in 1000 banks
  • Visualization of bandscope and band spectrogram
  • Visualization of audio in time, frequency and spectrogram
  • Filtering of audio output
  • Deemphasis filter, noise reduction, and record functions (audio and raw)
  • The Windows version requires the SDRUno driver installed. Not in Linux and macOS.
RTL2832U SDR
RTL2832U SDR config

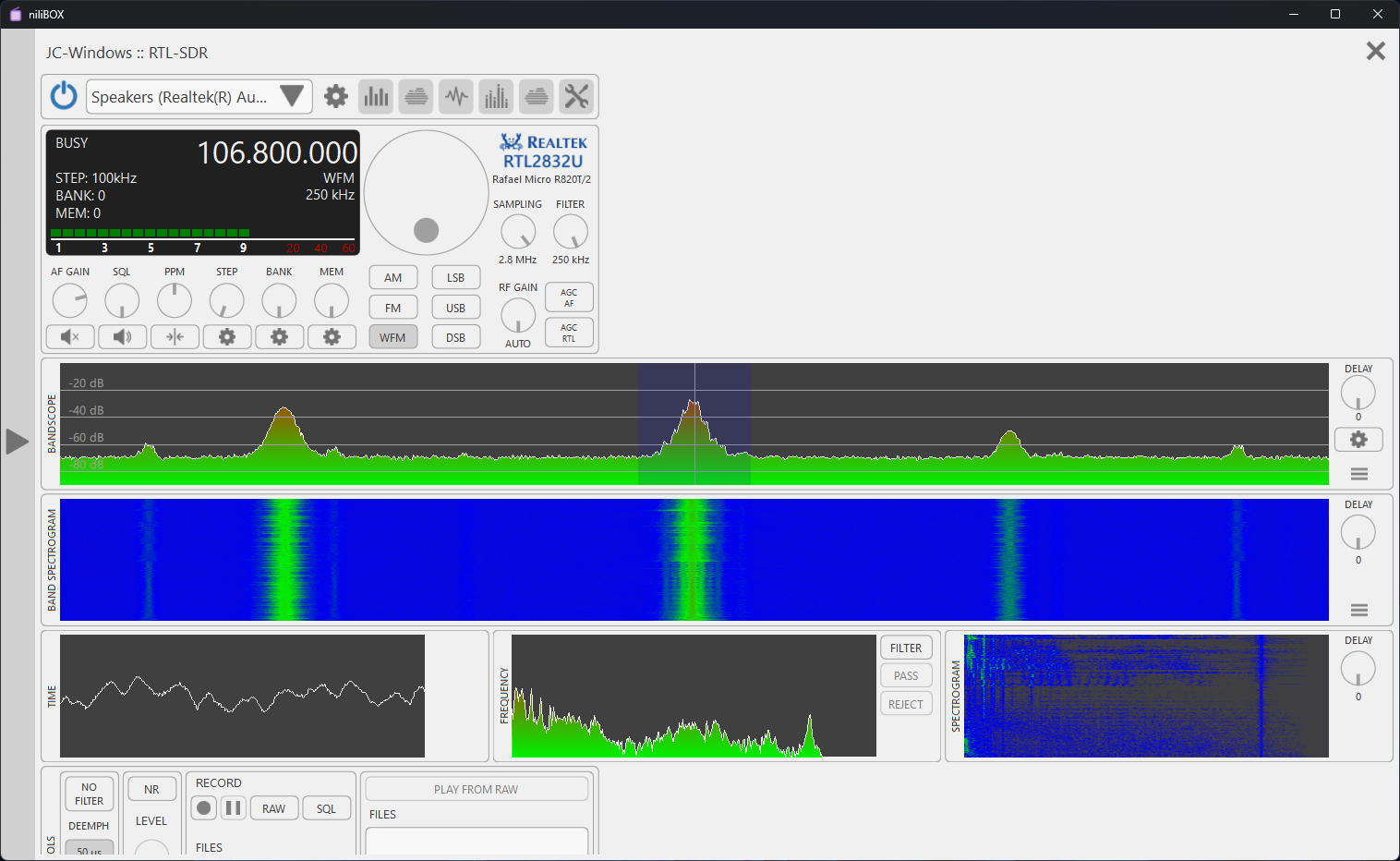

RTL2832U SDR

  • Control of a RTL2832U SDR dongle (local or remote)
  • Compatible with Rafael Micro, Elonics E4000 and Fitipower tuners
  • Control of sampling frequency, IF filter and RF gain
  • RTL AGC and audio AGC functions
  • 1 million station memories in 1000 banks
  • Visualization of bandscope and band spectrogram
  • Visualization of audio in time, frequency and spectrogram
  • Filtering of audio output
  • Deemphasis filter, noise reduction, and record functions (audio and raw)

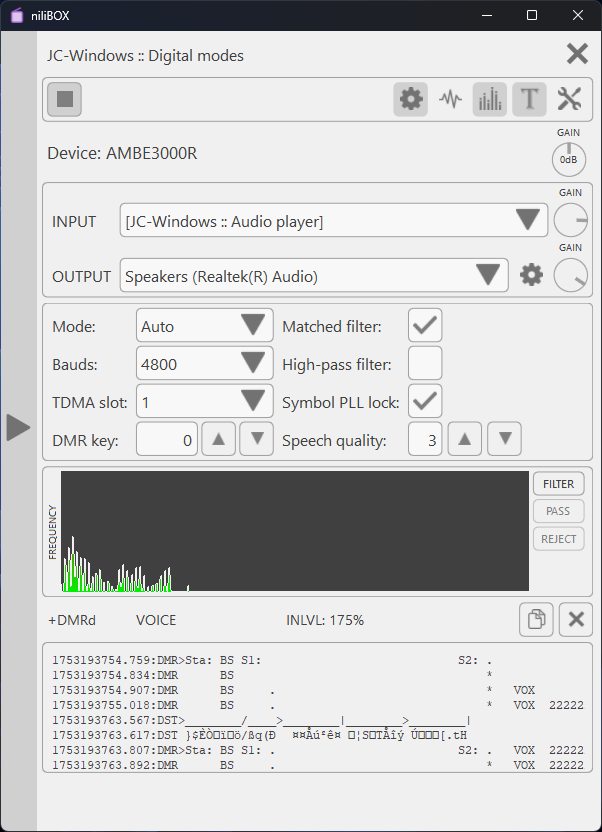

Digital modes
Digital modes config

Digital modes

Under development



  • Decodes most digital modes from audio source
  • Can be chained to another receiver running in niliBOX as audio source
  • Compatible with AMBE3000 devices and sofwtare emulation (testing purposes only)
  • Filtering of audio output
  • Audio recording function

Audio

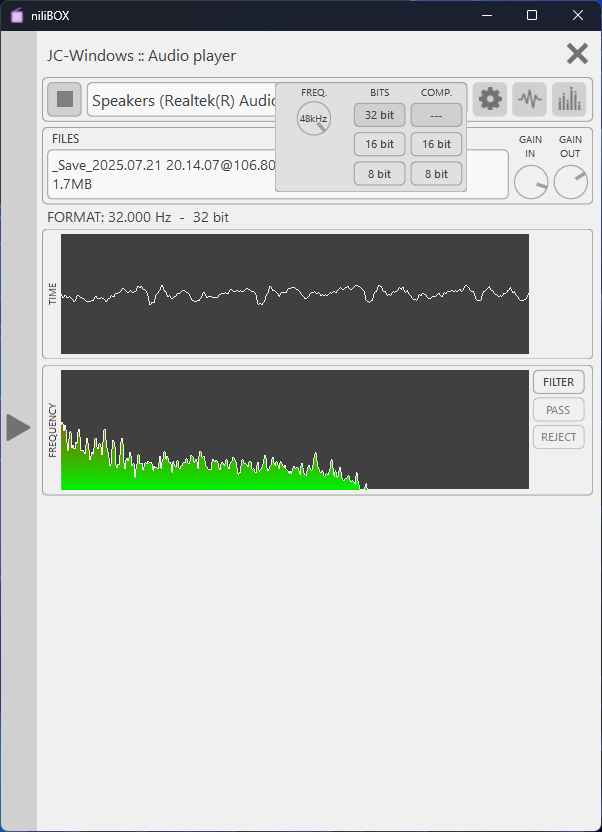

Audio player
Audio player config

Audio player

  • Basic audio player of wav files
  • Usuful to send audio output to other modules
  • Filtering of audio output

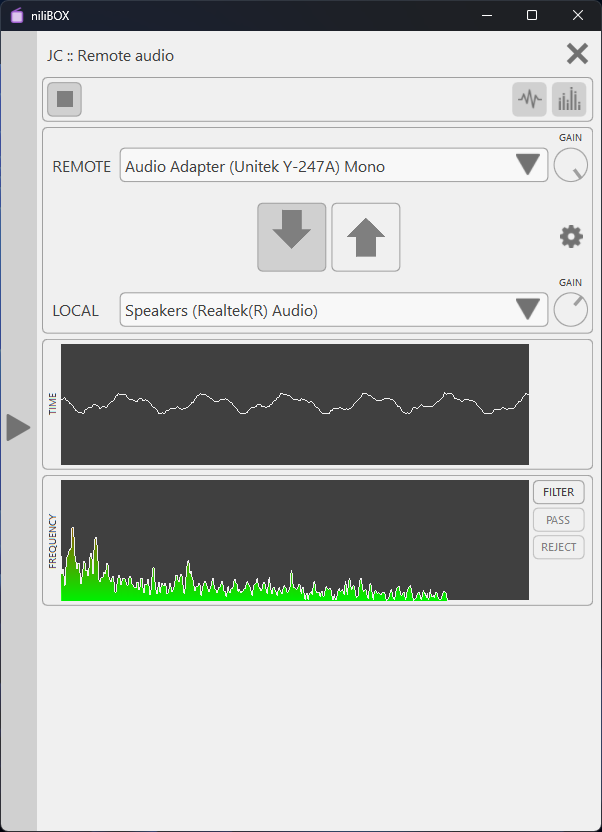

Remote audio
Remote audio config

Remote audio

  • Transfer of audio from remote to local and vice versa
  • Filtering of audio output

Video

Webcam
Webcam config

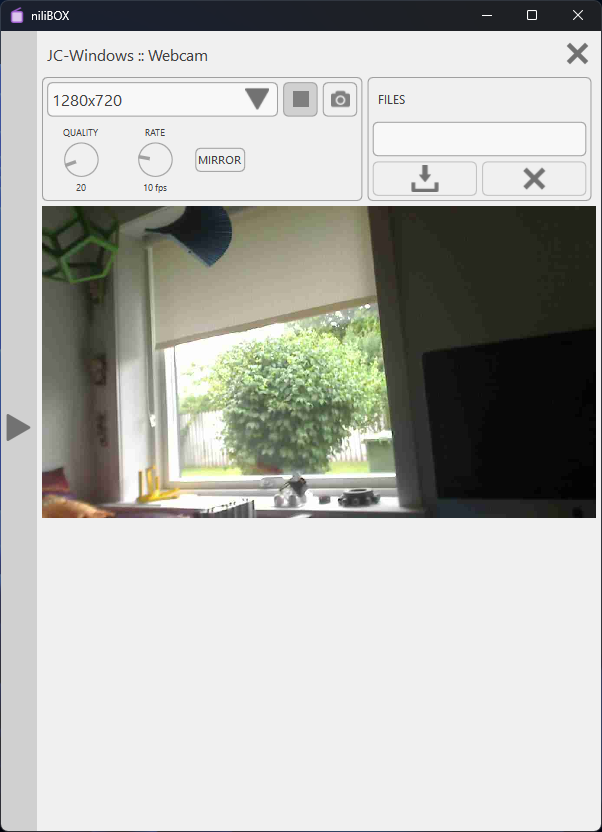

Webcam

  • Visualization of webcam devices (local or remote)
  • Screenshot and recording functions

Automation

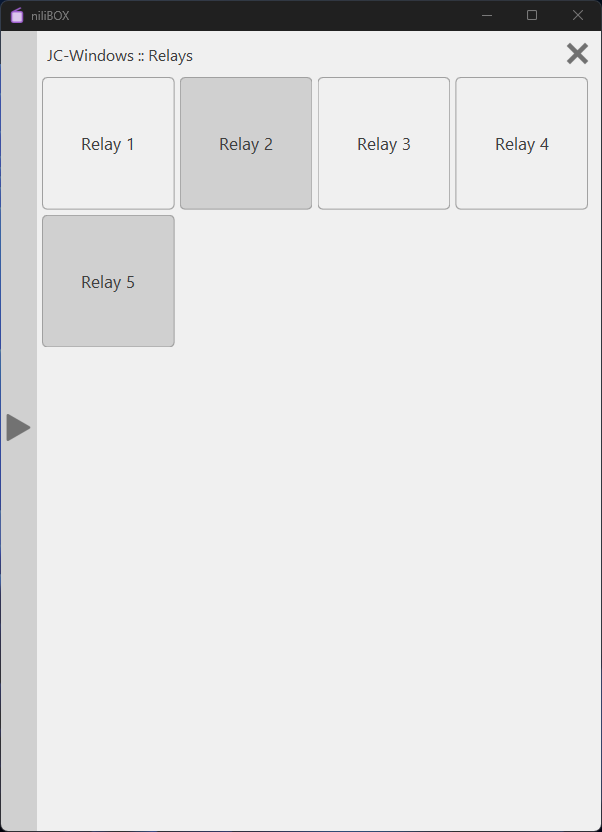

Relay control
Relay control config

Relay control

  • Control of relays connected via USB or serial port (local or remote)
  • Big flexibility to compose commands for ON and OFF
  • Capable to read relay status if the functionality is available on the device

Test

Driver test
Driver test config

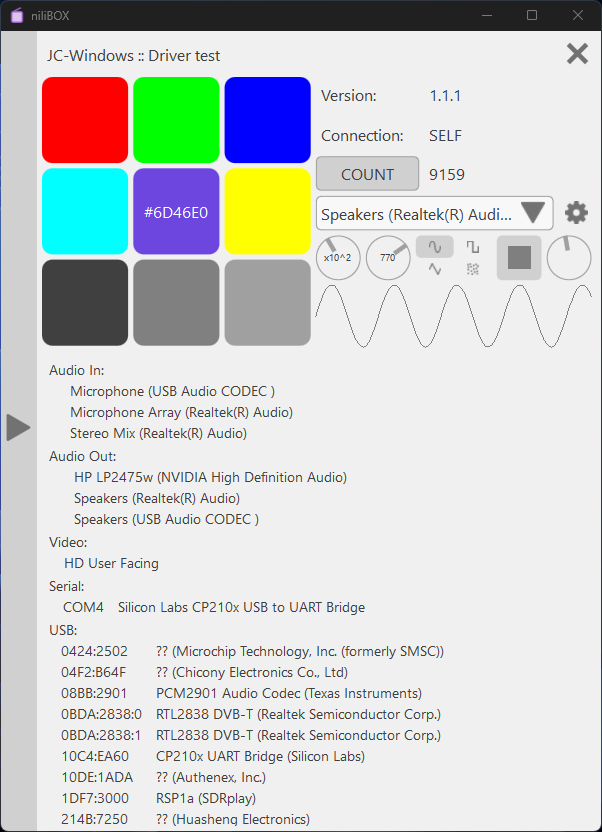

Driver test

  • Module to test graphics and communications
